LC-MS/MS Ion Ratio Failure: Causes & Fixes

A failed qualifier/quantifier ion ratio means the relative responses of two monitored transitions differ from an appropriate reference. The deviation can reveal a false identification or a biased quantifier, but low qualifier signal and data-processing choices can also make a real analyte fail. The acceptance rule depends on the method and its regulatory scope; there is no universal LC-MS/MS percentage.

Confirm the ratio definition, integration, retention time, qualifier signal and a concentration-matched reference first. Then compare neat and matrix-matched controls, examine both extracted-ion chromatograms (EICs) and challenge a suspected interference or acquisition effect before changing any identification criterion.

How do you check a failed qualifier/quantifier ion ratio?

In a targeted multiple reaction monitoring (MRM) method, a quantifier transition supplies the primary quantitative response; a qualifier transition adds evidence for identity. A common convention divides the qualifier peak area by the quantifier peak area:

R = A_qual / A_quant

where A_qual and A_quant are the integrated qualifier and quantifier peak areas. Some software reports the reciprocal, or a percent relative intensity against the most abundant ion, instead. Record the actual convention and keep the same peak-area-versus-height choice for sample and reference.¹^,² The relative deviation of a sample ratio from the reference ratio is:

ΔR (%) = 100 × (R_sample / R_ref − 1)

where R_sample is the ratio in the sample and R_ref the reference ratio. If R_ref = 0.40 and R_sample = 0.52, then R_sample / R_ref = 0.52 / 0.40 = 1.30 and ΔR = 100 × (1.30 − 1) = +30% relative. It is not +12 percentage points (0.52 − 0.40 = 0.12). This calculated example does not set an acceptance limit.

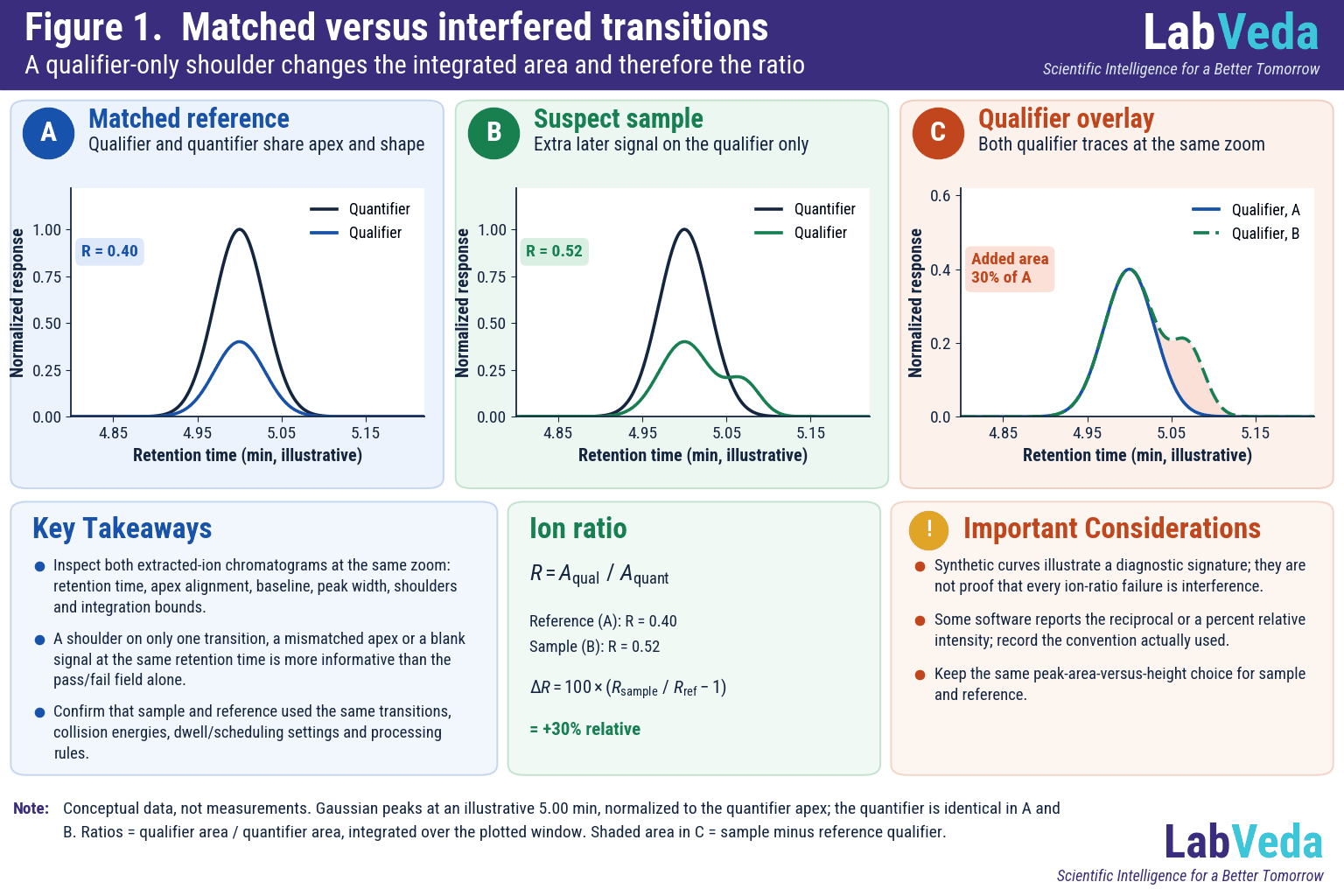

Inspect both EICs at the same zoom: retention time, apex alignment, baseline, peak width, shoulders, integration bounds and raw areas. A shoulder on only one transition, a mismatched apex or a blank signal at the same retention time is more informative than the pass/fail field alone. Confirm that sample and reference were acquired with the same transitions, collision energies, dwell/scheduling settings and processing rules.¹^,³ Figure 1 shows the difference between a matched reference and a qualifier-only shoulder.

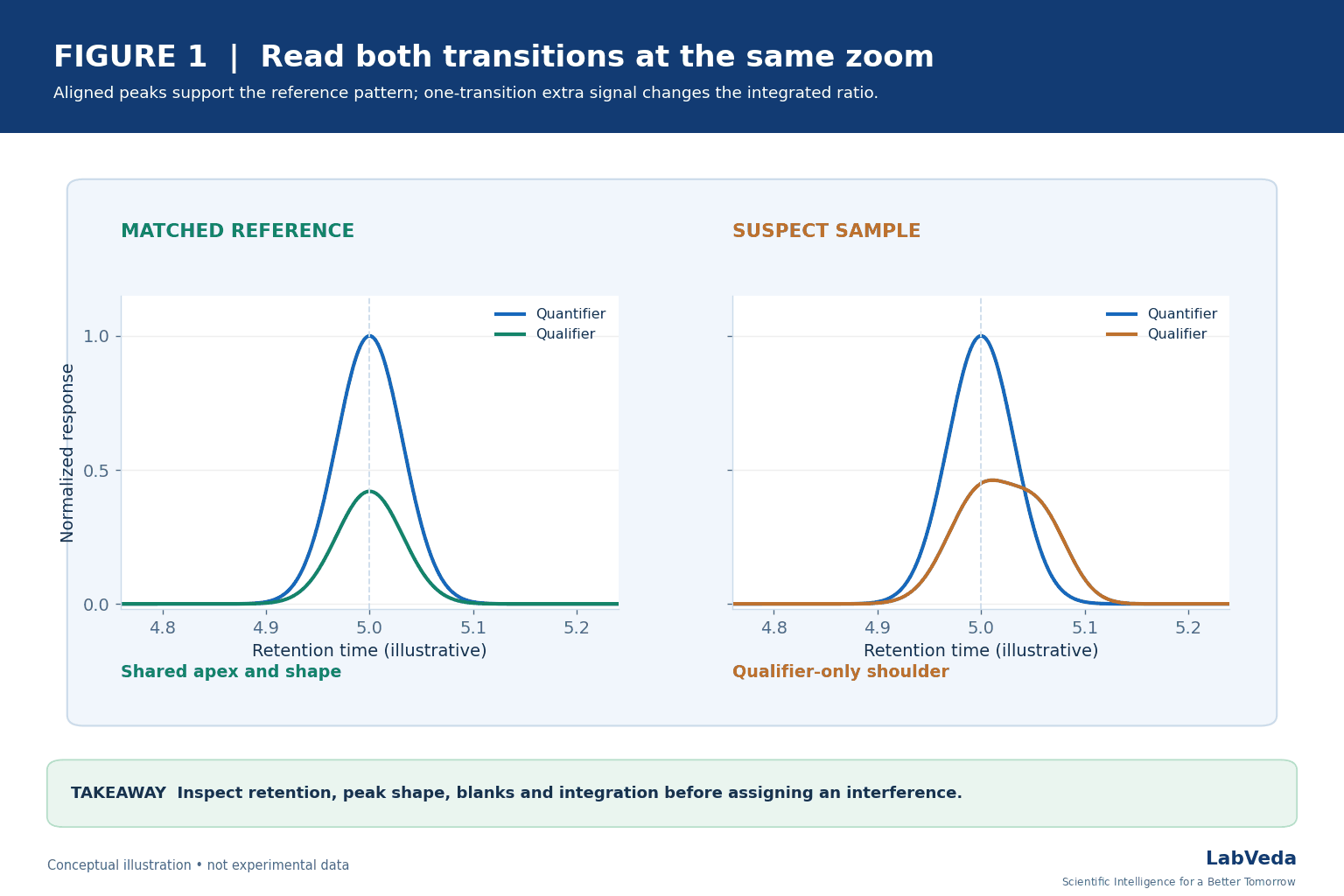

Two synthetic LC-MS/MS MRM chromatogram panels for an ion ratio check: in the matched reference the quantifier and qualifier peaks share an apex at 5.0 min; in the suspect sample the qualifier trace carries a later-eluting shoulder that changes its integrated area. — **Figure 1. Matched versus interfered transitions.** Conceptual extracted-ion chromatograms built from Gaussian peaks at an illustrative retention time of 5.0 min, normalized to the quantifier apex. In the matched reference, qualifier and quantifier share apex and shape. In the suspect sample the quantifier is unchanged and a second, later-eluting contribution is added to the qualifier trace only, which changes its integrated area and therefore the ratio. Synthetic curves illustrate a diagnostic signature; they are not measured data or proof that every ion-ratio failure is interference.

Diagnose this automatically

LC-MS PK Peak Integrity Engine

Interrogate carryover, matrix effects, ion suppression, and integration integrity before your PK data goes to QC.

Check my PK data

No account needed

What causes an LC-MS/MS ion ratio to fail?

Five mechanisms can produce a failed ratio, and each calls for a different discriminating experiment. Table 1 pairs each observation with the experiment that tests it and the limit on what that experiment can show.

**Table 1.** Ion-ratio failure patterns, plausible mechanisms and discriminating experiments. Mechanisms are hypotheses to test, not diagnoses.
Observation	Plausible mechanism	Discriminating experiment	Interpretation limit
Qualifier is weak and ratio scatter increases near the low end	Poor qualifier precision or integration at low signal	Matrix-matched replicates across low concentrations; inspect qualifier signal-to-noise ratio (S/N) and peak boundaries	A high-concentration reference may misstate low-end variability; apply the method’s own validated criterion.
One transition has a shoulder, apex shift or a signal in a blank matrix lot	Co-eluting or isobaric interference affecting one transition	Unspiked matrix lots, post-extraction spikes, alternate chromatography and an additional diagnostic transition where validated	A third transition can localize interference, but changing reportable ions requires validation.
Both transitions lose response in matrix but the ratio is stable	Shared ion suppression or matrix effect more plausible	Post-extraction matrix versus neat at matched concentration; inspect analyte and internal-standard (IS) areas	A stable ratio does not prove quantitative accuracy or absence of interference.
Ratio changes with injected concentration in neat standards	Response range, saturation, cross-contribution or acquisition problem	Neat concentration series, raw transition responses, dwell/scheduling and detector settings	Do not fit away a failure with a new ratio window.
Ratio fails sporadically or after high injections	Integration, carryover, preparation or sequence effect	Independent preparation, high → blank → low and reinjection where appropriate	Reinjection alone does not establish the identity of the original aliquot.

At low abundance, the qualifier is often less precise than the quantifier; a ratio threshold validated at middle or high concentration may therefore have a different false-failure rate near the reporting limit. A primary environmental LC-MS/MS study found higher ion-ratio variability at lower concentrations in complex matrices, and a separate experimental clinical study showed that isomeric or isobaric interference can shift transition-based identification. These results support measuring low-end behavior for the analyte and matrix, not inventing a wider tolerance after a sample fails.³^,⁴ Figure 2 sets the ratio arithmetic from the previous section beside the low-signal mechanism.

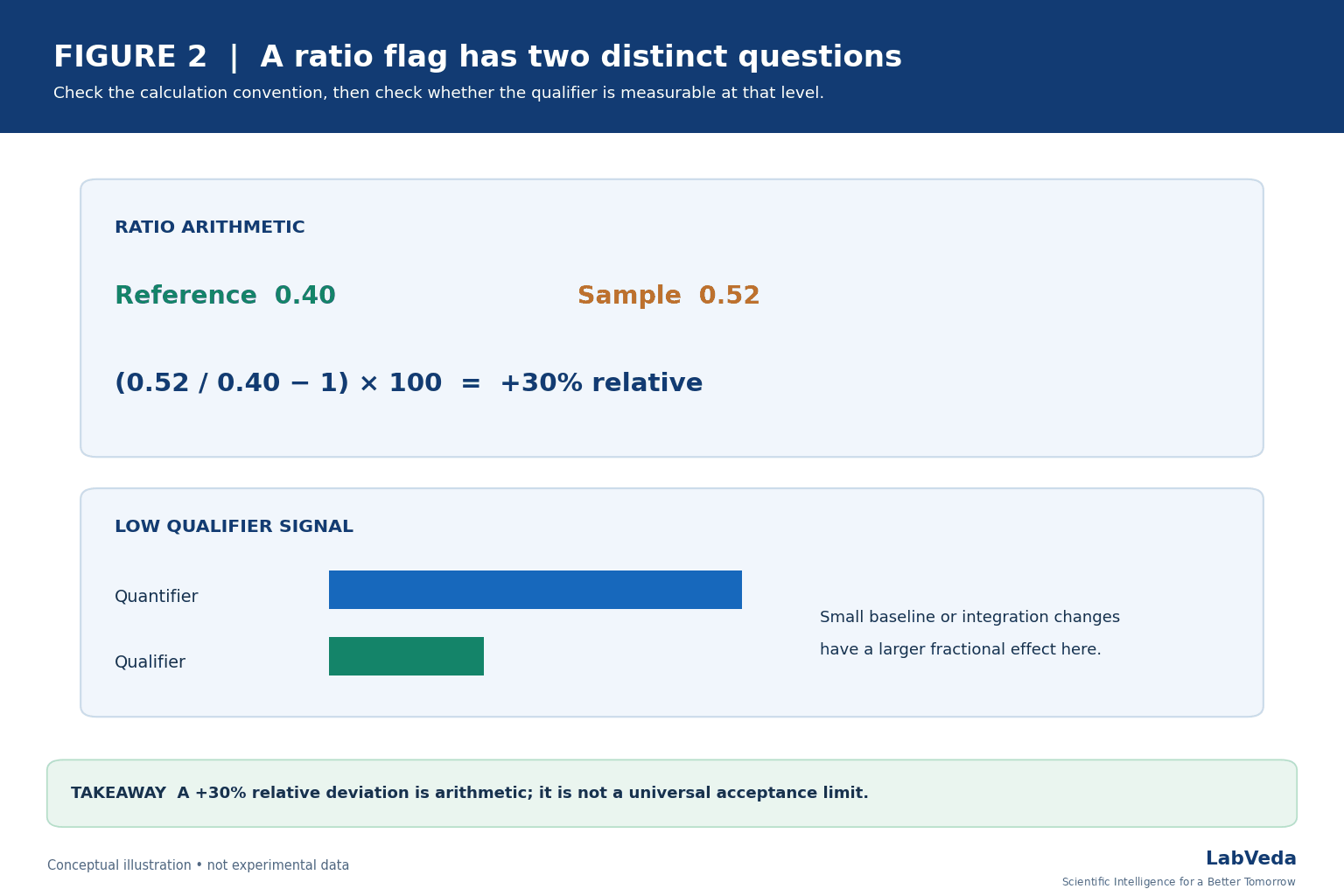

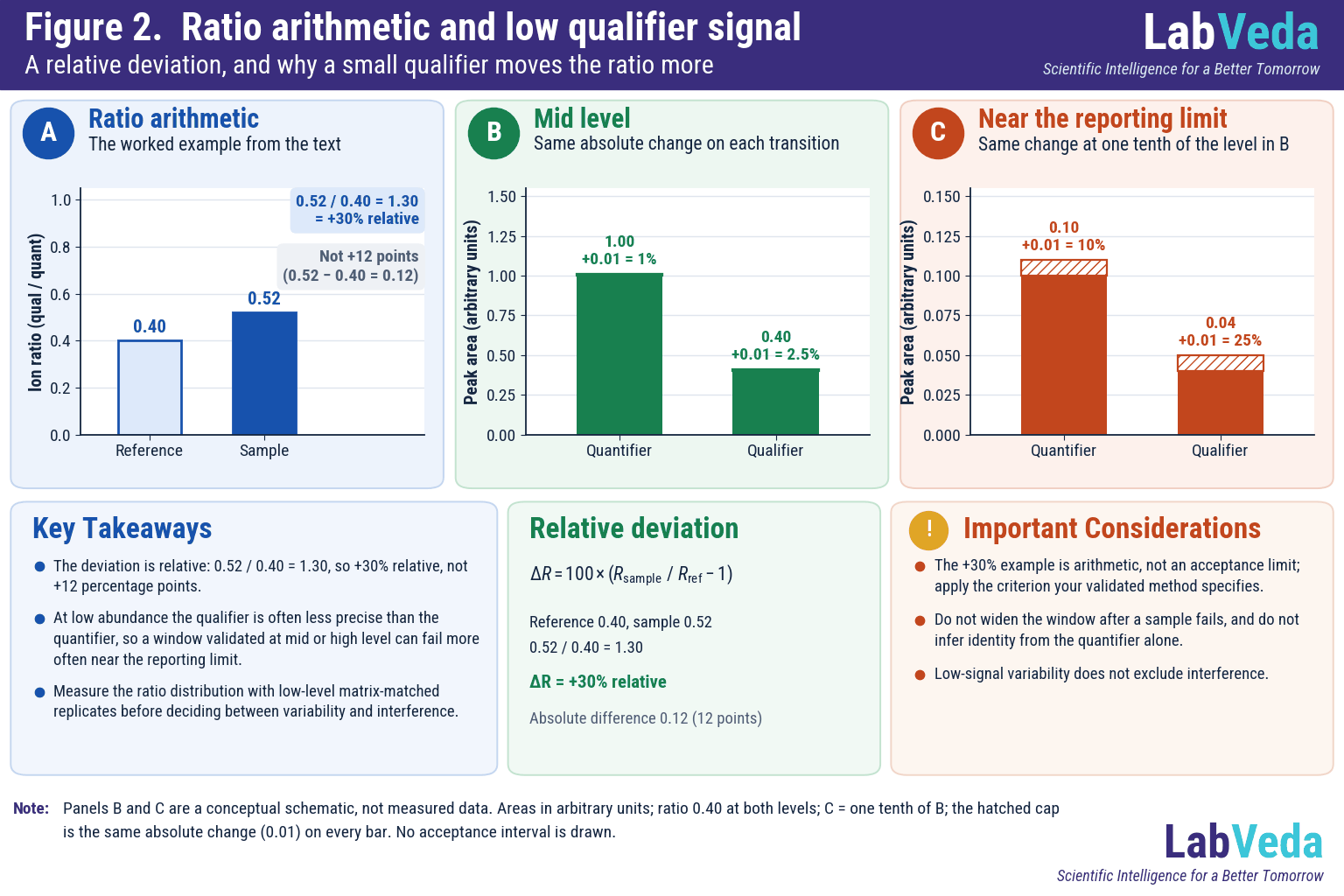

Schematic of LC-MS/MS ion ratio arithmetic and low qualifier signal: a reference ratio of 0.40 and a sample ratio of 0.52 give a +30% relative deviation, and a small qualifier bar beside a larger quantifier bar shows why small integration changes have a larger fractional effect. — **Figure 2. Ratio arithmetic and low qualifier signal.** The +30% relative example uses a reference ratio of 0.40 and a sample ratio of 0.52: 100 × (0.52 / 0.40 − 1) = +30%. The lower panel is a conceptual schematic, not measured data: when the qualifier response is small, the same absolute baseline or integration change is a larger fraction of its area. No acceptance interval is drawn, and the example is not a universal acceptance criterion.

Which controls localize an LC-MS/MS ion-ratio failure?

Prepare a reference series spanning the relevant sample level and keep the acquisition and integration method fixed. Compare neat standards, post-extraction spikes in blank matrix, pre-extraction matrix spikes where recovery is in question, unspiked matrix lots and actual sample preparations. A matrix-dependent deviation absent from neat standards supports matrix or co-elution as an investigation branch. A concentration-dependent deviation that persists in neat standards points toward response or acquisition behavior, the same response-range question that underlies dilution nonlinearity in LC-MS/MS. Replicate independent preparations separate preparation variance from a single extraction or integration event.¹^,³^,⁴

Plot the raw quantifier and qualifier areas as well as their ratio. If one trace acquires a shoulder or additional peak, test chromatographic separation and selectivity. If both traces fall proportionally, investigate ionization and sensitivity, but keep the possibility of a hidden interferent open. In plasma extracts, co-eluting phospholipids are one candidate; the phospholipid interference guide covers how to confirm and remove them. Inspect IS response separately; the analyte’s qualifier/quantifier ratio is not the analyte/IS ratio used for quantification.¹^,³ Table 2 lists the controls and the finding from each that changes the next test.

**Table 2.** Controls that localize a failed ion ratio and the positive finding that changes the next test. Acquisition and integration are held fixed across all controls.
Control	What it isolates	Positive finding that changes the next test
Low, mid and high neat standards	Concentration dependence without sample matrix	Ratio changes in neat series → inspect response range and acquisition settings.
Post-extraction matrix spikes versus neat, matched concentration	Matrix influence on measured transition responses	Matrix-only deviation → test additional matrix lots and chromatographic separation.
Unspiked blank matrix lots	Endogenous signal at analyte retention time	One-transition blank peak → localize interference before calling the sample positive.
Independent sample preparations and reinjections	Preparation versus injection/processing variance	Prep-specific failure → review extraction, vial and stability conditions.
High → blank → low challenge	Preceding-injection memory	Blank or low response after high → investigate autosampler carryover and repeat the challenge.

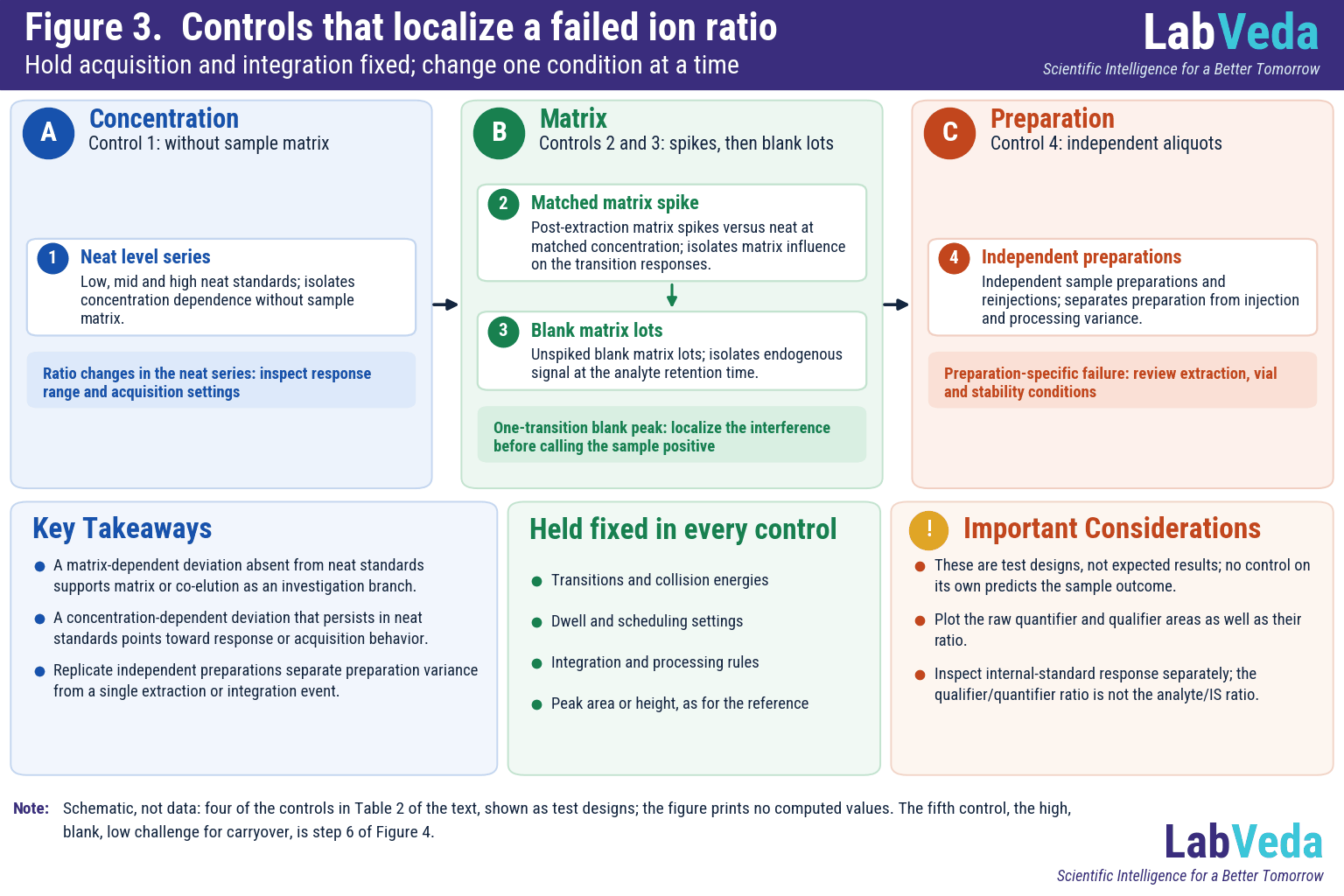

Figure 3 summarizes four of these comparisons as test designs.

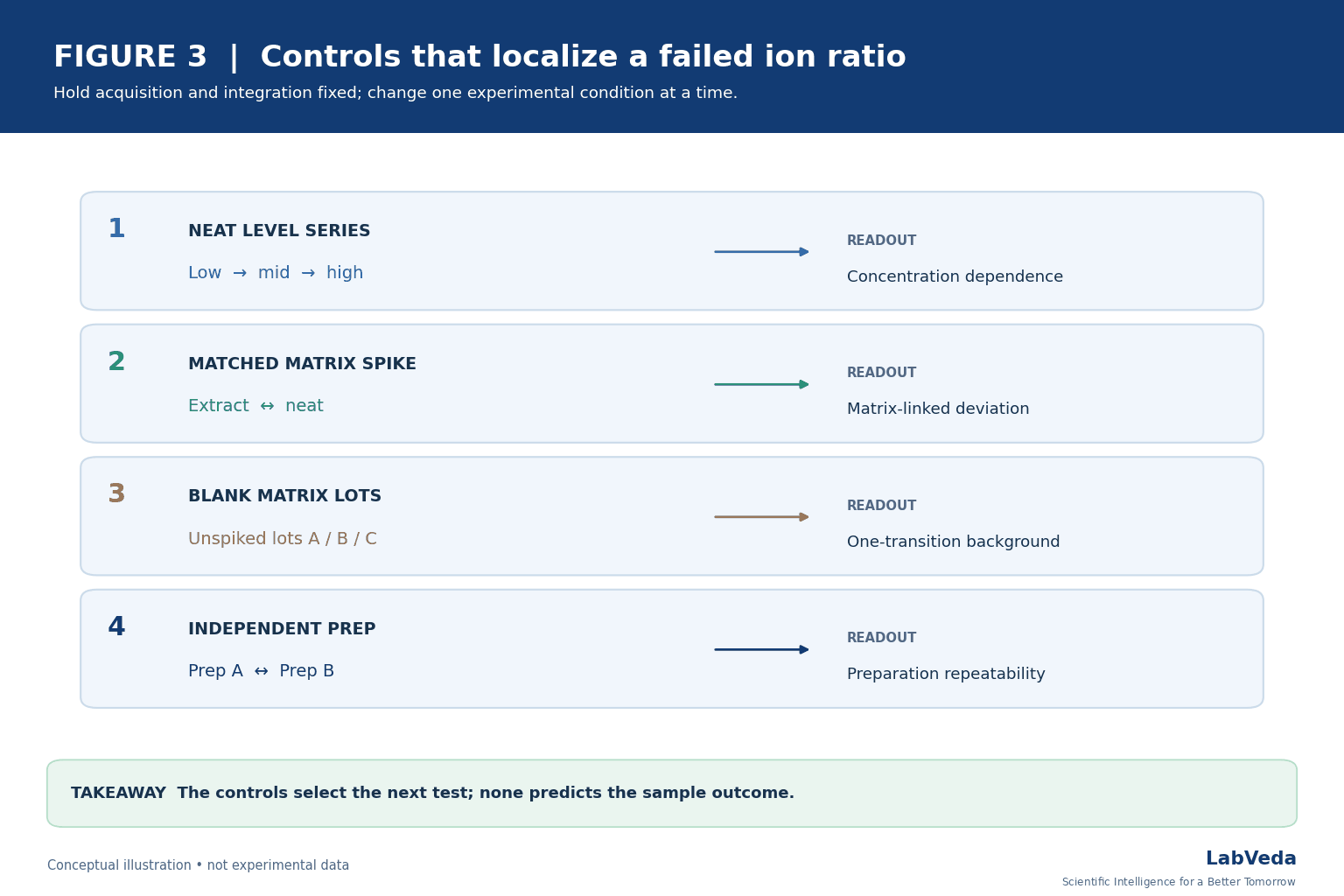

Four controlled LC-MS/MS ion ratio experiments: a neat low-mid-high level series, matched matrix extract versus neat spikes, unspiked blank matrix lots A, B and C, and independent preparations A and B, each with its readout. — **Figure 3. Controls that localize a failed ion ratio.** Four controlled comparisons: a neat concentration series, matched matrix versus neat spikes, blank matrix lots and independently prepared aliquots. Each row changes one defined experimental condition while acquisition and integration stay fixed, and names its readout. These are test designs, not expected results; no control on its own predicts the sample outcome.

Which ion-ratio tolerance applies to my method?

For EU pesticide-residue analysis in food and feed, the European Commission’s SANTE/11312/2021 v2026 guidance states that, provided both ions have adequate sensitivity and selectivity and responses remain within the linear range, unit-resolution MS/MS ion ratios should not deviate by more than 30% relative from the reference value. The guidance is for that application; it is not a blanket acceptance limit for clinical, pharmaceutical bioanalytical or environmental methods.¹

For EU official controls of residues of pharmacologically active substances in food-producing animals, the consolidated Commission Implementing Regulation (EU) 2021/808 requires an ion-ratio match within ±40% relative of standards at comparable concentrations measured under the same conditions, alongside other identification requirements. This different rule has a different regulatory scope.²

ICH M10, Bioanalytical Method Validation and Study Sample Analysis (Step 4, 24 May 2022), governs bioanalytical method validation and study sample analysis within its scope. It defines chromatographic selectivity and specificity, evaluates relevant interferences and matrix effects and recommends a stable isotope-labeled IS where possible; it does not provide a general qualifier/quantifier ion-ratio tolerance for every LC-MS/MS assay. Set and validate assay-specific identity checks under the governing method, protocol and applicable regulation. Never transfer an EU residue rule automatically to a pharmacokinetic (PK) assay.⁵

Can a result with a failed ion ratio be reported?

A failed identity criterion requires documented investigation under the laboratory’s governing standard operating procedure (SOP). Preserve the original chromatograms and audit trail. Check calibration and QC performance, reference preparation, integration, blank matrices, retention time and sample context. If the qualifier cannot be reliably measured at the intended reporting level, reassess the method’s identification capability and reportable range through the appropriate validation or change-control process. If a new transition, different chromatographic separation, altered integration rule or new ion-ratio window is justified, validate it before reportable use.^1–5

Do not silently delete a failing qualifier, switch quantifier and qualifier after viewing the result, widen a limit for one sample or report an identity claim based solely on an acceptable quantifier concentration. A clean-looking chromatogram is supportive evidence; it is not a substitute for the applicable method criteria. The final disposition depends on the full evidence and the laboratory’s validated procedure.^1–5 Figure 4 shows the diagnostic route from a failed ratio to a verified correction.

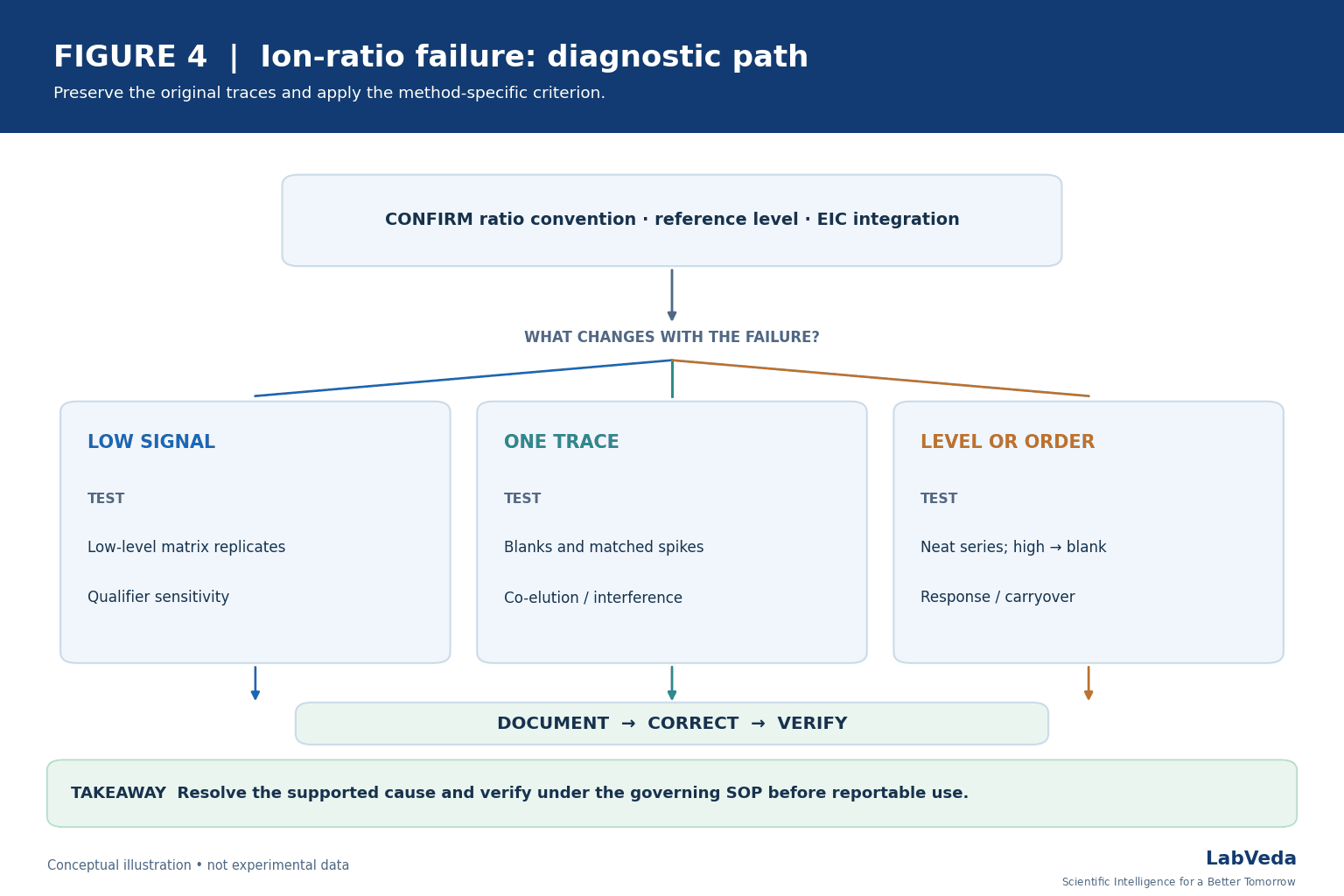

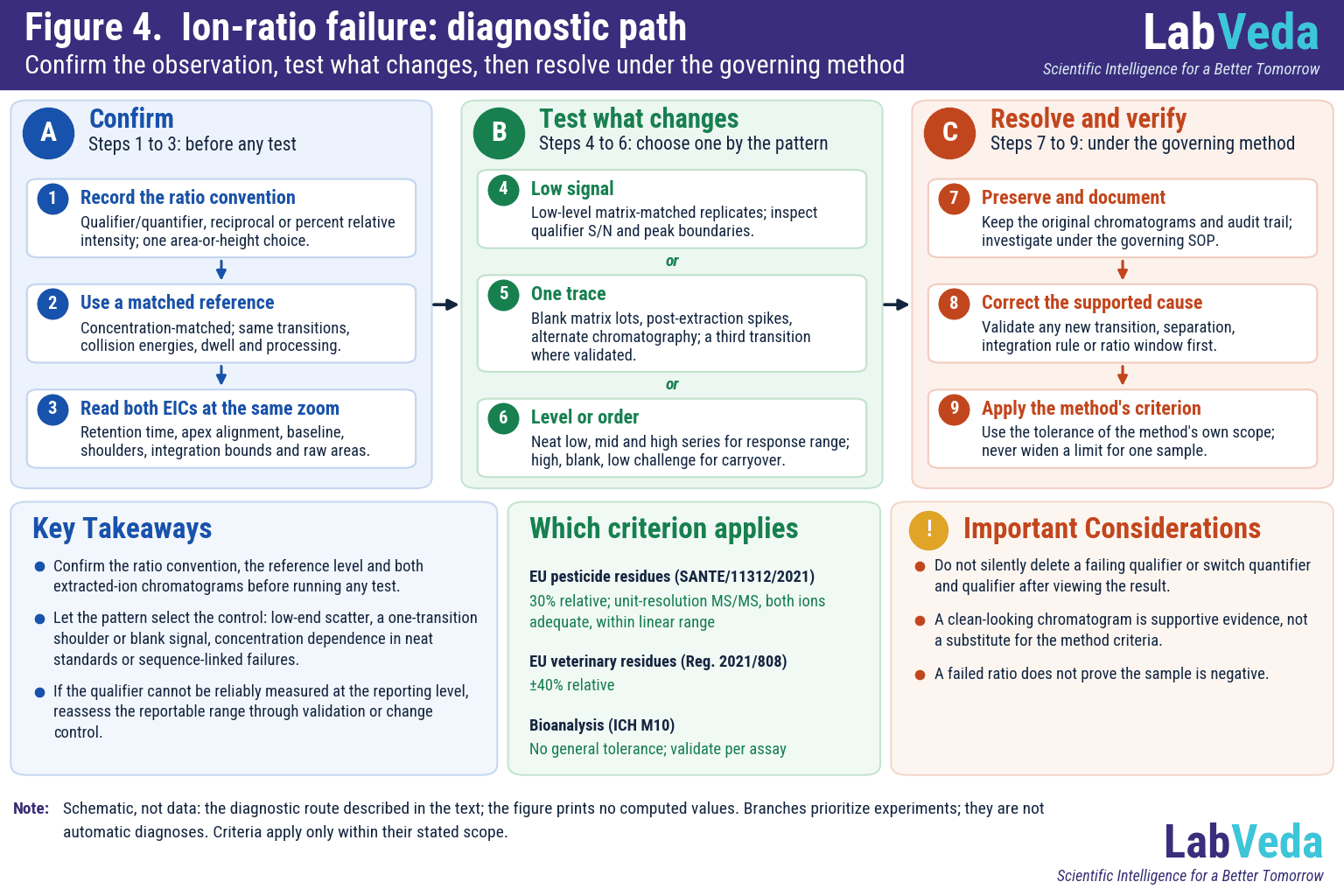

LC-MS/MS ion ratio failure diagnostic path: confirm ratio convention, reference level and EIC integration, then branch to low-signal, one-trace interference or level-and-order tests, each leading to document, correct and verify. — **Figure 4. Ion-ratio failure: diagnostic path.** Verify the ratio convention, reference level and chromatographic evidence, then choose a low-signal, one-trace interference or level-and-order (response-range or carryover) test and resolve and verify the supported cause under the governing method. Branches prioritize experiments; they are not automatic diagnoses.

Frequently asked questions

Is a 30% ion-ratio tolerance universal?

No. The SANTE/11312/2021 v2026 criterion of 30% relative applies to unit-resolution MS/MS in EU pesticide-residue analysis of food and feed, and only where both ions have adequate sensitivity and selectivity and respond within the linear range. Other scopes set other rules: Regulation (EU) 2021/808, for example, specifies ±40% relative for residues of pharmacologically active substances in food-producing animals. Use the criterion that your validated method and its regulatory framework specify.¹^,²

Why does my qualifier fail near the LOQ while the quantifier passes?

The qualifier can have lower signal and more variable integration, so a ratio window validated at middle or high concentration may fail more often near the limit of quantitation (LOQ). Confirm the qualifier’s usable sensitivity and ratio distribution with low-level matrix-matched replicates before deciding whether the failure is analytical variability or interference. Do not infer identity from the quantifier alone, and do not widen the window after a sample has failed.³^,⁴

Can I use the analyte/internal-standard ratio instead?

No. The analyte/IS ratio primarily supports quantification; the qualifier/quantifier ratio compares two transitions of the same analyte for identity or selectivity. A stable analyte/IS ratio does not test whether one analyte transition carries an interference, so it cannot stand in for the identity check. Inspect both ratios, but do not substitute one for the other.³^,⁵

Can I add a third transition when the ion ratio fails?

A third transition, where validated, can help localize an interference to one trace, and SANTE/11312/2021 lists additional product ions among the evidence that raises confidence in an identification. Reporting with it is a method change, however. A new transition, a different chromatographic separation, an altered integration rule or a new ratio window must be validated before reportable use.¹

Does a failed ratio prove the sample is negative?

No. It means the confirmation evidence that the method specifies was not met. Investigate possible interference, low qualifier signal and processing issues, preserve the original chromatograms, then follow the validated SOP for disposition. A positive identity claim cannot be restored by assumption, and a failed ratio alone does not show that the analyte is absent.¹^,²

The takeaway

A failed qualifier/quantifier ratio is a signal to investigate, not a verdict. Confirm the ratio convention, the reference level and both extracted-ion chromatograms first, then let the pattern — low-end scatter, a one-transition shoulder or blank signal, a stable ratio under shared suppression, concentration dependence in neat standards or sporadic sequence-linked failures — select the control that separates low qualifier signal, interference, response range and carryover. Apply only the criterion that belongs to the method’s scope, preserve the original data and validate any new transition, separation, integration rule or ratio window before a result is reported.

References

European Commission, Analytical Quality Control and Method Validation Procedures for Pesticide Residues Analysis in Food and Feed, SANTE/11312/2021 v2026, 25 November 2025 (implemented 1 January 2026), section D and Table 3.
European Commission, Commission Implementing Regulation (EU) 2021/808 on the performance of analytical methods for residues of pharmacologically active substances used in food-producing animals, consolidated text 17 February 2025, Annex I, section 1.2.4.
L. F. Angeles, D. S. Aga, “Establishing Analytical Performance Criteria for the Global Reconnaissance of Antibiotics and Other Pharmaceutical Residues in the Aquatic Environment Using Liquid Chromatography-Tandem Mass Spectrometry,” J. Anal. Methods Chem. 2018, 7019204 (2018). doi:10.1155/2018/7019204.
A. Rexhaj, M. Vogeser, K. Habler, “Evaluation of the detuning ratio as a tool to detect potential interference in LC-MSMS analysis,” J. Mass Spectrom. Adv. Clin. Lab 37, 56–64 (2025). doi:10.1016/j.jmsacl.2025.07.002.
ICH, M10 Bioanalytical Method Validation and Study Sample Analysis, Step 4 guideline (24 May 2022).
