A post-extraction spike experiment measures how much co-eluting matrix changes LC-MS/MS response, separately from how much analyte the sample preparation loses. Three matched preparations – a neat reference, extracted blank matrix spiked after extraction and matrix spiked before extraction – give the matrix factor, extraction recovery and process efficiency.
It is the quantitative half of the matrix-effect toolkit described in the LC-MS ion suppression and matrix effects guide: post-column infusion shows where in the run an effect occurs, and the post-extraction spike shows how large it is. This page covers the three-set design in depth – how to prepare the sets, how to calculate and read the three ratios, the mistakes that make them misleading and how to turn the result into the next method change.
What does a post-extraction spike experiment measure?
A post-extraction spike is a quantitative matrix-effect experiment. Unlike post-column infusion, which shows where suppression or enhancement occurs during the chromatographic run, the post-extraction spike measures the magnitude of the response change at the analyte’s retention time.
Matuszewski, Constanzer and Chavez-Eng formalized the three-set comparison for HPLC–MS/MS bioanalysis in 2003.1 The design matters because a low signal in an extracted sample can come from two different mechanisms:
- Matrix effect: co-eluting material changes ionization efficiency once the analyte reaches the source.
- Extraction loss: the analyte is not fully carried through protein precipitation, liquid–liquid extraction, SPE, evaporation, reconstitution or another preparation step.
A conventional recovery experiment that compares an extracted spike with a neat standard confounds those mechanisms. The three-set design separates them, and Figure 1 shows the experimental logic.
LC-MS PK Peak Integrity Engine
Interrogate carryover, matrix effects, ion suppression, and integration integrity before your PK data goes to QC.

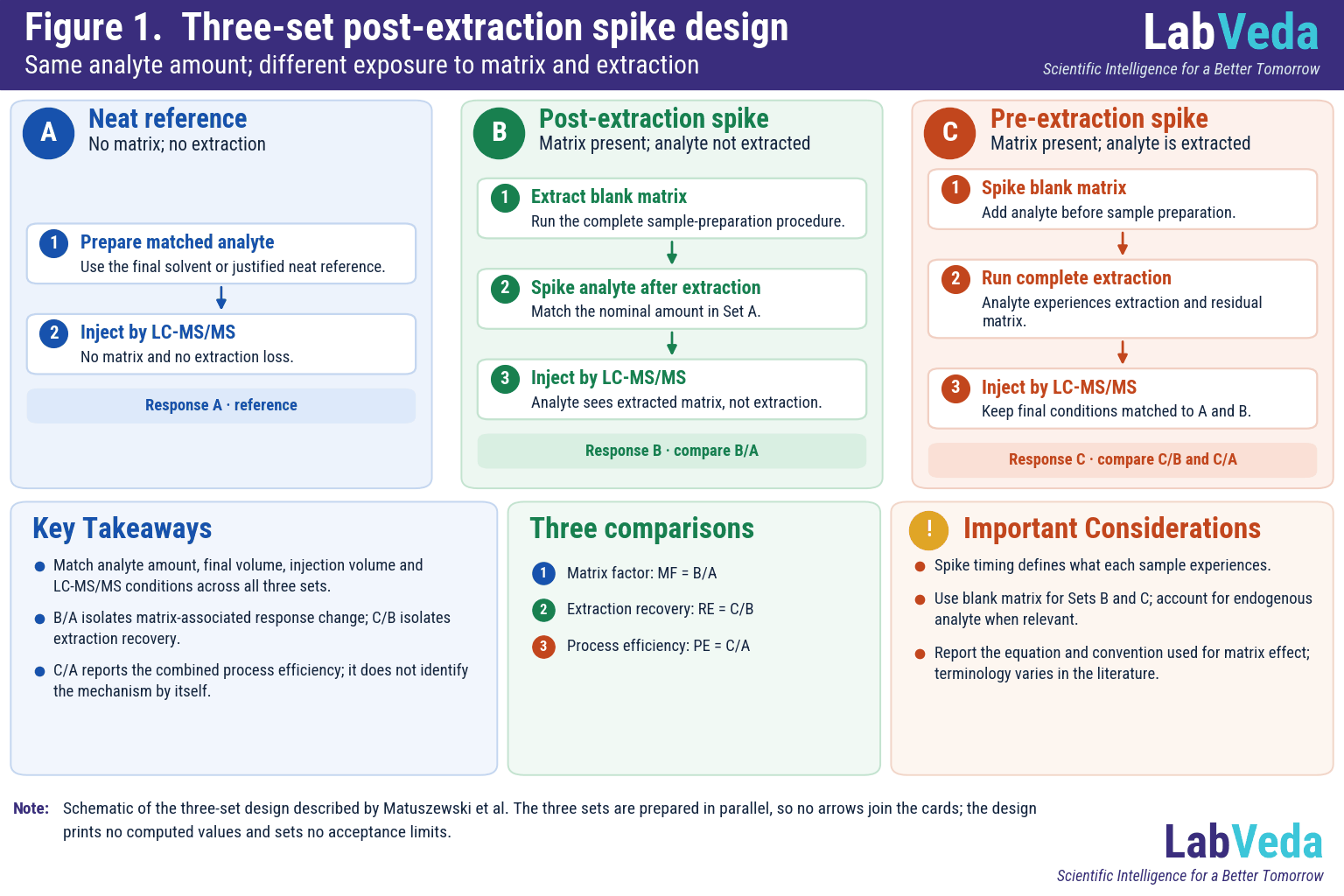

How do you prepare the three sample sets?
Use matched nominal analyte concentrations and matched final volumes. The comparison only works if the amount presented to the LC-MS/MS system is equivalent across sets.
Set A: neat reference
Prepare analyte in the final reconstitution solvent, a mobile-phase-compatible solvent or another justified neat reference solution. Set A has not been exposed to matrix or to extraction losses. Its response is A.
Set B: post-extraction spike
Take blank matrix through the complete sample-preparation procedure. After extraction is complete, add analyte so that the final nominal concentration matches Set A. Set B has experienced the extracted matrix, but the analyte has not experienced the extraction. Its response is B.
Set C: pre-extraction spike
Spike the analyte into blank matrix before extraction, then process the sample exactly as a study sample. Set C has experienced both the extraction procedure and the residual matrix that reaches the ion source. Its response is C.
Prepare enough replicates and independent matrix lots for the question you are asking. During method development, the experiment is often used to compare extraction conditions or matrix lots. For regulated validation, do not substitute it for the matrix-effect evaluation required by ICH M10 Bioanalytical Method Validation and Study Sample Analysis (Step 4, 24 May 2022); the two answer related but different questions.2
How do you calculate matrix factor from a post-extraction spike?
For the three-set design, the matrix factor (MF) is the ratio of the post-extraction spike response to the neat response:
MF = B / A
where B is the Set B response and A the Set A response, measured on the same basis (peak area or peak height). Matuszewski et al. reported the same ratio as a percentage, ME (%) = B/A × 100.1 An MF below 1.00 means lower analyte response in the extracted matrix than in neat solution under the tested conditions; an MF above 1.00 means enhancement.
For example, with A = 100,000 and B = 72,000 response units:
MF = 72,000 / 100,000 = 0.72
The post-extraction response is therefore 72% of the neat response, or 28% lower, in this illustrative experiment.
Some literature reports “matrix effect” as the percentage change from neat, (B/A − 1) × 100, rather than as the ratio. On that convention the same result reads −28%, so the sign and wording of suppression invert. Report the actual ratio and state the equation you used.
Matuszewski et al. also distinguished the absolute matrix effect, measured in one matrix source, from the relative matrix effect, the variation of the response between sources.1 A single MF says nothing about the second; keep the individual-lot values visible.
How do you calculate extraction recovery?
Extraction recovery (RE) compares the pre-extraction spike with the post-extraction spike:
RE = C / B or, as a percentage, RE (%) = (C / B) × 100
where C is the Set C response.1 Because Sets B and C are both measured in extracted matrix, the ratio largely cancels the ionization effect common to the two preparations. The remaining difference reflects analyte loss during sample preparation.
Using the same illustrative experiment, with B = 72,000 and C = 57,600:
RE = 57,600 / 72,000 = 0.80 = 80%
A recovery of 80% does not by itself make a method unacceptable. Quantitative bioanalysis does not require 100% extraction recovery; what matters is whether recovery and overall assay performance are consistent and fit for purpose. A lower but reproducible recovery can be preferable to a higher but variable one.
What is process efficiency in the three-set experiment?
Process efficiency (PE) combines extraction recovery and matrix-associated response change:
PE = C / A = MF × RE
with MF and RE expressed as fractions.1 For the worked example:
PE = 57,600 / 100,000 = 0.576 = 57.6% and 0.72 × 0.80 = 0.576

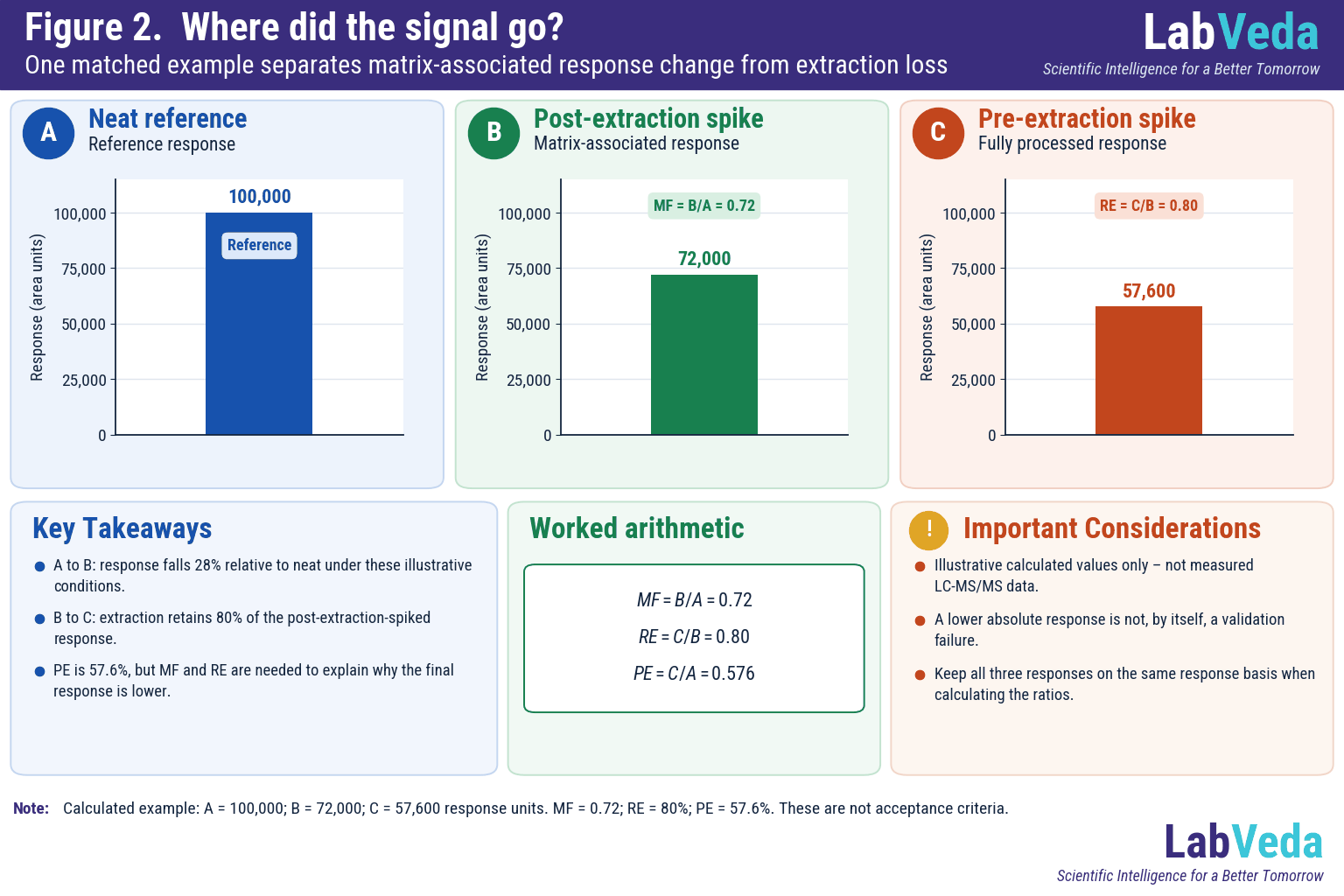

Process efficiency is the number that tells you how much of the neat signal survives the whole method, but not why. Figure 2 shows why the three values should not be collapsed into a single “recovery” number.
How do you interpret matrix factor and recovery together?
Read the two ratios together; each one alone can point to the wrong fix.
If MF is low but recovery is high, the extraction is retaining the analyte but the residual matrix is suppressing its response. The next experiment should change what reaches the ion source: cleaner extraction, chromatographic separation from the suppressing region, a lower matrix load, adjusted flow or source conditions.
If MF is near 1 but recovery is low, ionization is comparatively clean but the sample preparation is losing analyte. Investigate extraction solvent, pH, partitioning, sorbent chemistry, wash strength, evaporation losses, adsorption and reconstitution.
If both MF and recovery are low, both mechanisms are contributing. Optimizing only source conditions will not fix poor extraction, and optimizing only extraction yield may still leave substantial suppression.
If MF is above 1, matrix-associated enhancement is likely. Enhancement should not be dismissed because it increases signal; it can still create bias and lot-to-lot variability.

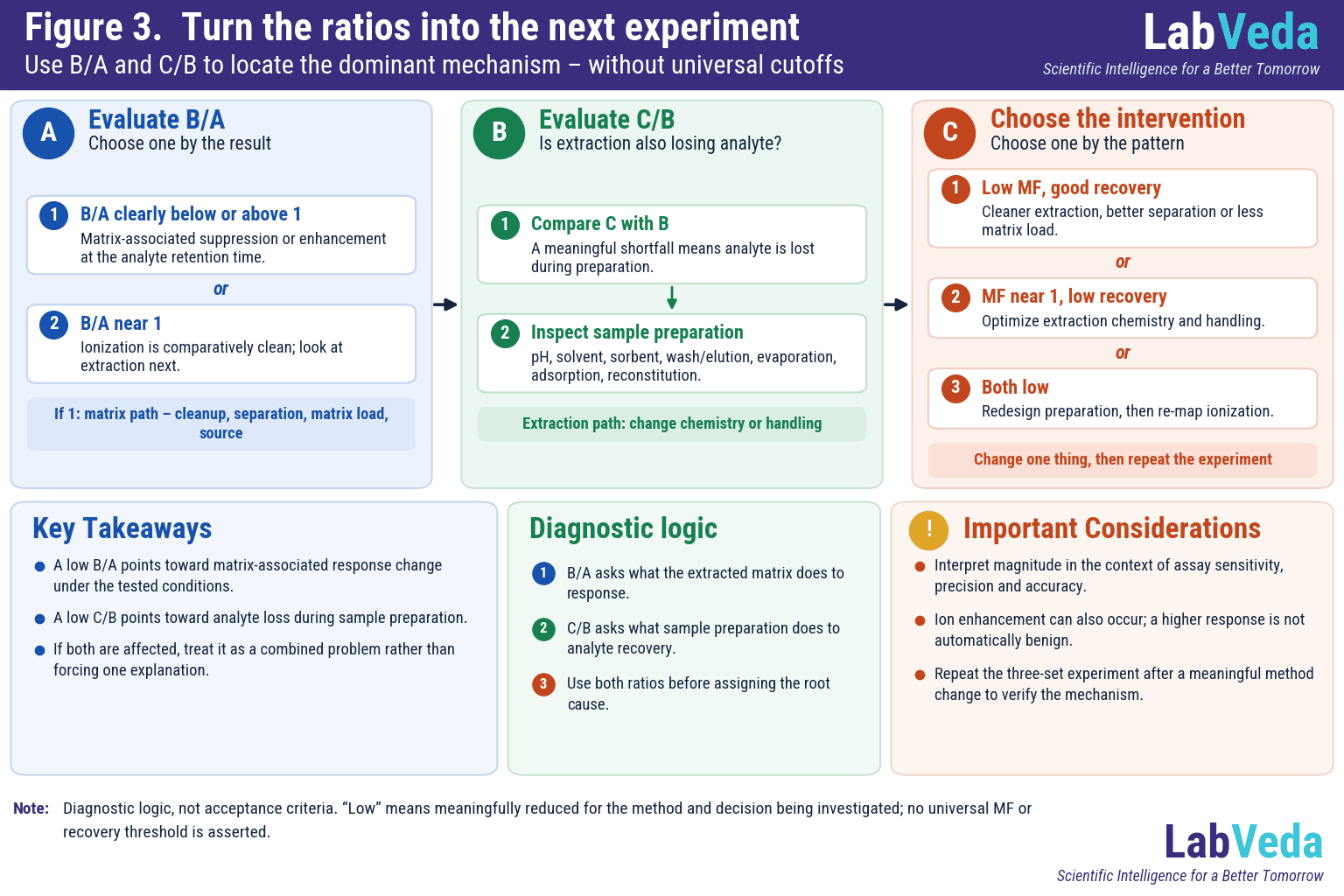

Figure 3 summarizes this diagnostic use.
How does a post-extraction spike complement post-column infusion?
The two experiments answer different questions. Post-column infusion continuously adds analyte after the column while an extracted blank is injected; dips or rises in the infused-analyte trace mark retention-time zones associated with suppression or enhancement.3 It answers “where in the chromatogram is the problem?” It does not give the matrix factor at the analyte concentration used for quantitation, and it cannot separate matrix-associated response change from extraction loss.
The post-extraction spike answers “how large is the response change, and is extraction also contributing?” A practical sequence is:
- Use post-column infusion to map the affected retention region.
- Use post-extraction spikes to quantify the response change at the analyte’s retention time.
- Add the pre-extraction set when you also need extraction recovery and process efficiency.
- Modify extraction or chromatography according to the mechanism.
- Repeat the relevant experiment after the method change.
For lipid-rich extracts, the same pairing applies to phospholipids: see phospholipid interference in LC-MS/MS for monitoring and removing the commonest suppressing class.
How does the three-set experiment differ from ICH M10 matrix-effect validation?
ICH M10 defines matrix effect as the alteration of analyte response by interfering, often unidentified, components of the sample matrix. For chromatographic methods, section 3.2.3 requires matrix effect to be evaluated with at least three replicates of low and high quality-control (QC) samples, each prepared using matrix from at least six different sources or lots. Accuracy should be within ±15% of nominal and precision, as the coefficient of variation (CV), should not exceed 15% in every individual source or lot.2 The guideline also asks for evaluation in relevant patient or special populations when available, and recommends hemolyzed or lipemic matrix case by case, especially when these are expected in the study.2
That requirement is not the three-set Matuszewski experiment. ICH M10 does not require the three-set design; the three-set experiment is a mechanistic method-development tool that quantifies matrix-associated response change, extraction recovery and process efficiency, while the M10 evaluation tests whether the validated assay performs acceptably across matrix sources. M10 sets no pass/fail limit for MF, RE or PE, and its ±15% criteria should not be borrowed as one.

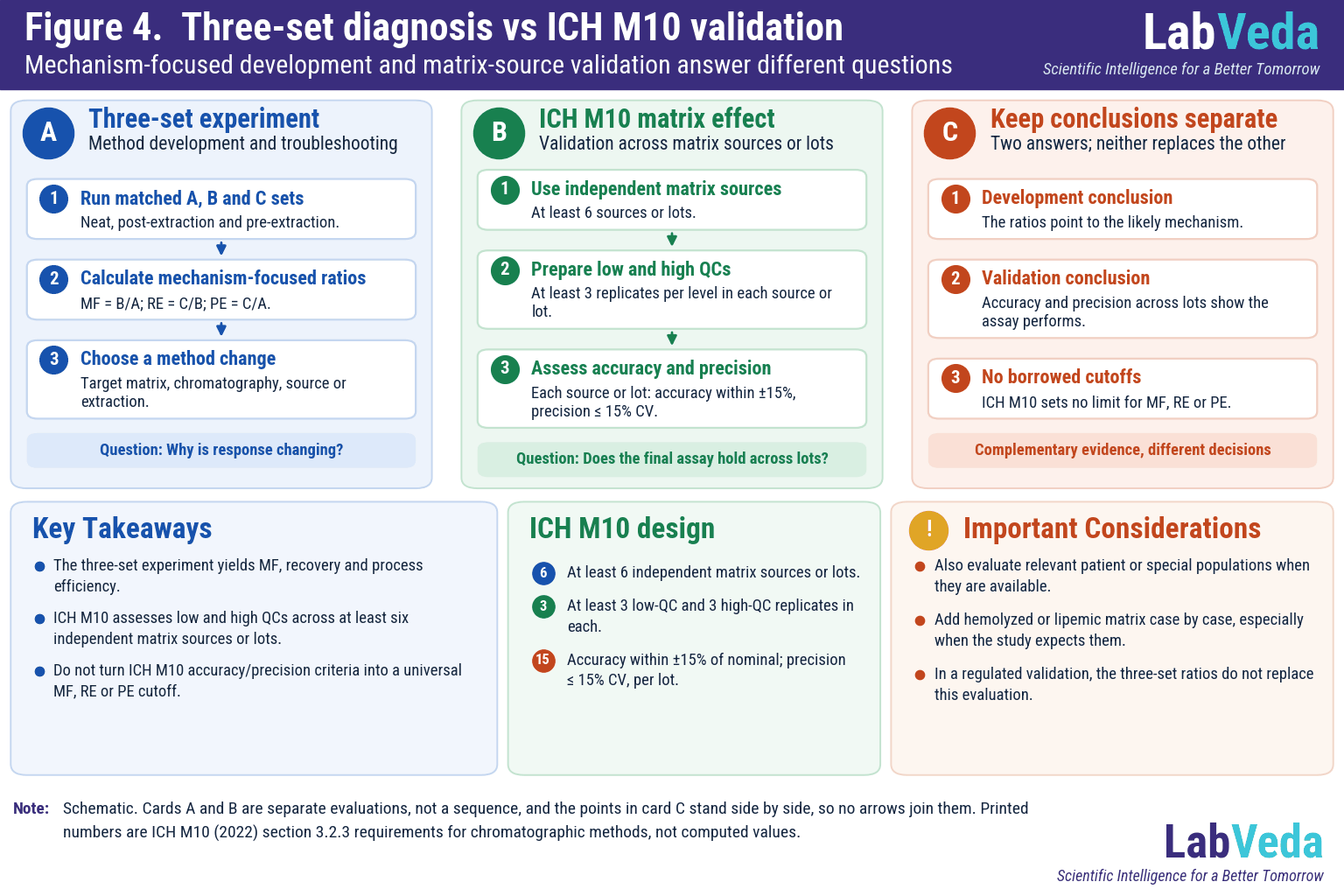

Figure 4 keeps the two purposes separate.
Should the post-extraction spike use analyte response or the analyte-to-IS ratio?
During development, inspect the analyte and internal-standard (IS) responses separately before relying only on the analyte-to-IS ratio.
A stable-isotope-labeled internal standard (SIL-IS) can compensate for matrix-associated response change when it co-elutes closely and experiences the same ionization environment as the analyte. But a stable ratio can conceal large absolute suppression of both signals, and passing pre-spiked QCs do not rule out lot-dependent effects that later show up as variable IS responses in incurred samples.4 That matters when sensitivity, robustness or lot-to-lot behavior is being assessed.
For the three-set experiment, report whether the calculations use analyte peak area, IS peak area or the analyte/IS response ratio, and do not mix conventions between sets. A ratio computed on analyte/IS responses is an IS-normalized matrix factor and answers a different question from the absolute MF. What a SIL-IS does and does not correct is a topic of its own.
What mistakes make a post-extraction spike calculation misleading?
The arithmetic is simple; the experimental matching is not.
Unequal final analyte amount. If Sets A, B and C do not contain the same nominal amount at injection, B/A and C/B no longer isolate the intended mechanisms.
Different final solvent composition. A neat standard prepared in a stronger or weaker solvent than the extracted samples can change peak shape or ionization independently of matrix.
Spiking before evaporation in one set and after reconstitution in another. The point at which analyte is added determines which losses it experiences. Define the design before running it.
Using non-blank matrix. Endogenous analyte or interfering species distort B and C unless the background is measured and subtracted.
Testing only one matrix lot. A clean result in one donor does not establish that suppression is controlled across biological variability.
Changing extraction volume or concentration factor between sets. The matrix load reaching the source must remain comparable. If you dilute to reduce that load, check that the response then scales with dilution – see LC-MS/MS dilution non-linearity.
Reporting only the average MF. Similar means can hide substantial lot-to-lot variability. Keep individual-lot results visible during development.
How do you act on a post-extraction spike result?
Use the result to choose the next experiment rather than treating MF, RE and PE as three isolated QC numbers. Table 1 maps the common patterns to the next step.
| Observation | Likely dominant issue | Next experiment |
|---|---|---|
| Low MF, acceptable recovery | Matrix-associated suppression | Cleaner extraction, change retention or selectivity, reduce matrix load, repeat post-column infusion |
| MF near 1, low recovery | Extraction loss | Optimize pH, solvent, sorbent, wash and elution, adsorption and reconstitution |
| Low MF and low recovery | Both | Redesign preparation first, then re-map ionization |
| MF above 1 | Enhancement | Identify the co-eluting region or interference; test across lots |
| Good mean MF but high lot-to-lot spread | Matrix variability | Expand the lot assessment and improve selectivity or cleanup |
| Good MF and recovery but weak assay accuracy or precision | Another assay component | Investigate calibration, internal standard, integration, stability, carryover or instrument performance |
A three-set experiment is most useful when it leads directly to a method change and a repeat experiment. A single calculation stored in a validation appendix does not improve the method.
Frequently asked questions
Is a post-extraction spike the same as a matrix-effect test?
It is one quantitative way to assess matrix-associated response change, and the most direct one. The post-extraction spike compares analyte response in extracted blank matrix with a matched neat solution at the analyte’s retention time, which gives a number rather than the qualitative map that post-column infusion provides. When a pre-extraction set is added, the same experiment also separates extraction recovery and overall process efficiency.1 In regulated work it complements, rather than replaces, the lot-based QC evaluation of ICH M10.
What is the difference between matrix factor and matrix effect?
Matrix factor is commonly the ratio of post-extraction response to neat response, B/A. A value below 1 indicates suppression and above 1 indicates enhancement under that convention. “Matrix effect” is used inconsistently: Matuszewski et al. reported it as B/A × 100, so 72% means suppression, while other authors report the percentage deviation from neat, so the same result reads −28%.1 Neither is wrong, but they cannot be compared without the equation. Always state which one you used.
Is 100% extraction recovery required?
No. Complete recovery is not inherently necessary. A method can be fit for purpose with lower recovery if the extraction is reproducible and the final assay meets its accuracy and precision requirements. As a working rule, recovery that is consistent across concentration and lots matters more than recovery that is high. A more exhaustive extraction can also carry more matrix into the extract, so maximum recovery and minimum suppression can pull in different directions; judge the change by MF, RE and PE together.
Can process efficiency be high when recovery is low?
Only if matrix-associated enhancement partly offsets the extraction loss. Because PE = MF × RE, an MF above 1 raises PE even when RE is below 1. For example, MF = 1.25 and RE = 0.80 give PE = 1.00, a neat-looking overall response that hides both an enhancement and a 20% extraction loss. That is why process efficiency alone should not be used to diagnose the mechanism.
Should the experiment be run at more than one concentration?
Yes, where the decision depends on it. A matrix factor measured at one level is not guaranteed to hold at another, so a single-level result is a narrow basis for choosing an extraction. During method development, aim for a consistent MF across the low and high QC concentration levels, which is also where ICH M10 later evaluates matrix effect.4 Running the three sets at low and high levels shows whether the extraction and chromatography behave the same across the range.
How many matrix lots should I use?
For an exploratory development experiment, the number depends on the decision being made: one pooled lot can compare two extraction options, but it cannot show lot-to-lot spread. For ICH M10 matrix-effect validation of chromatographic assays, use at least six independent matrix sources or lots, with at least three low-QC and three high-QC replicates from each.2 Add relevant special populations and hemolyzed or lipemic matrix when the study is expected to include them.
The takeaway
A post-extraction spike becomes most informative when it is run as a three-set experiment. The neat reference A, post-extraction spike B and pre-extraction spike C give matrix factor (B/A), extraction recovery (C/B) and process efficiency (C/A) without confusing ionization effects with sample-preparation losses. Read the ratios together and use them to choose the next method change; repeat the experiment after the change, then confirm the final assay across matrix sources under ICH M10 or the applicable validation framework.
References
- B. K. Matuszewski, M. L. Constanzer, C. M. Chavez-Eng, “Strategies for the assessment of matrix effect in quantitative bioanalytical methods based on HPLC–MS/MS,” Anal. Chem. 75(13), 3019–3030 (2003).
- International Council for Harmonisation, ICH M10: Bioanalytical Method Validation and Study Sample Analysis, Step 4 (24 May 2022), section 3.2.3 Matrix effect.
- P. J. Taylor, “Matrix effects: the Achilles heel of quantitative high-performance liquid chromatography–electrospray–tandem mass spectrometry,” Clin. Biochem. 38(4), 328–334 (2005).
- Y. Fu, W. Li, F. Picard, “Assessment of matrix effect in quantitative LC-MS bioanalysis,” Bioanalysis 16(12), 631–634 (2024).
