Stable Isotope Labeled Internal Standards in LC-MS/MS: What They Correct and What They Don’t

A stable isotope labeled internal standard (SIL-IS) corrects LC-MS/MS results only for disturbances it shares with the analyte. Extraction losses that happen after it is added, injection variability and ion suppression in a shared retention window cancel in the analyte/IS ratio. Losses before it is added, retention differences, cross-signal contribution, IS-channel interference and detector saturation do not.

How co-eluting matrix changes ionization in the first place is covered in the LC-MS ion suppression and matrix effects guide. This page is about the internal standard itself: why the ratio works, the conditions under which it stops working and how to test a SIL-IS before the method relies on it. Figure 1 shows the principle.

Why does a stable isotope labeled internal standard work?

A SIL-IS is the analyte with some atoms replaced by stable isotopes, usually ²H (deuterium), ¹³C, ¹⁵N or ¹⁸O. The mass shift lets the mass spectrometer measure it separately, while the near-identical structure gives near-identical extraction, retention and ionization behavior.² For that reason ICH M10 Bioanalytical Method Validation and Study Sample Analysis (Step 4, 24 May 2022) recommends the stable isotope labeled analyte as the internal standard (IS) whenever possible with MS detection, provided the label is of high isotope purity, no isotope exchange occurs and any unlabeled analyte in the material is checked and its influence evaluated.³

Quantitation uses the response ratio:

R = A_analyte / A_IS

where A_analyte and A_IS are the analyte and internal-standard peak areas, and the calibration curve relates R to analyte concentration. Neither area needs to stay constant. What the method needs is that any disturbance changes both areas by the same proportion. Hewavitharana pointed out the consequence: when analyte and SIL-IS co-elute, the slope of R against concentration is independent of matrix composition, so the calibrators need not be matrix-matched to every sample.¹

Take an analyte area of 100,000 and a SIL-IS area of 50,000:

R = 100,000 / 50,000 = 2.00

A co-eluting matrix component now suppresses both signals by 40%:

analyte: 100,000 × 0.60 = 60,000   SIL-IS: 50,000 × 0.60 = 30,000   R = 60,000 / 30,000 = 2.00

Both absolute signals are 40% lower, and the ratio – and so the calculated concentration – is unchanged. If instead the analyte falls 40% but the SIL-IS falls only 20%:

SIL-IS: 50,000 × 0.80 = 40,000   R = 60,000 / 40,000 = 1.50   (1.50 − 2.00) / 2.00 = −25%

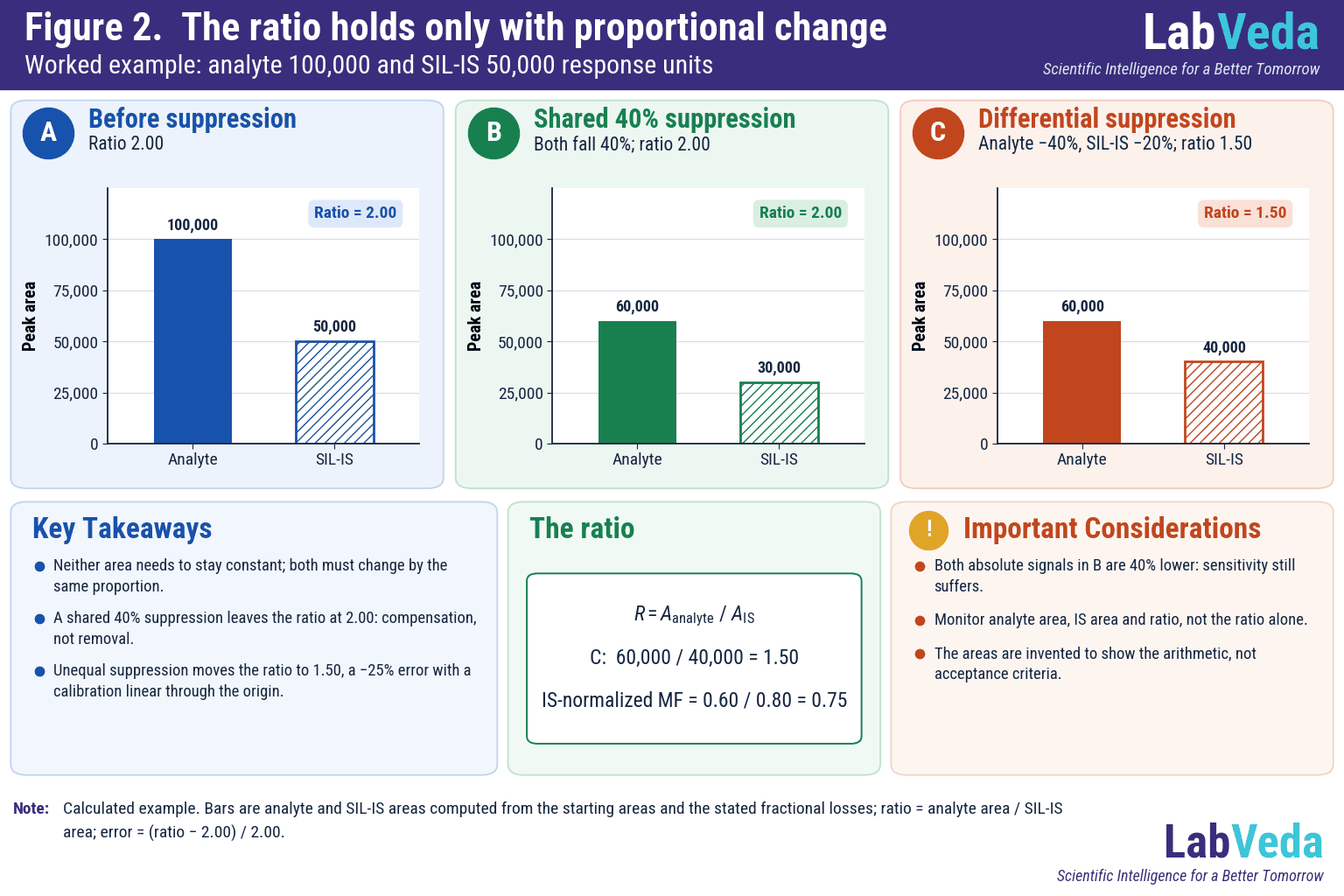

With a calibration that is linear through the origin, the sample now reads 25% low. Figure 2 shows the three cases.

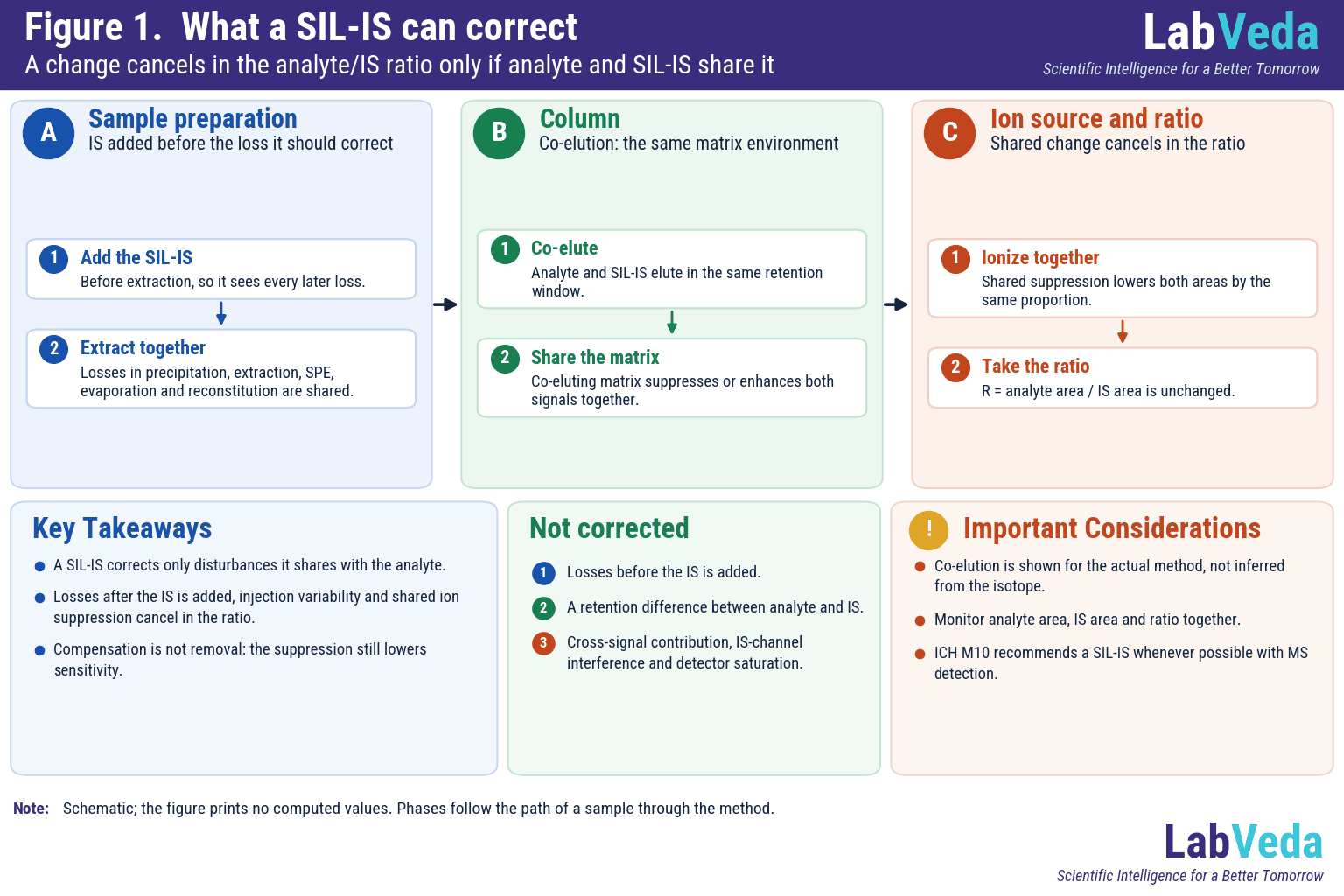

What does a SIL-IS correct in LC-MS/MS?

A well-chosen SIL-IS compensates for four kinds of variability, each only to the extent that analyte and internal standard experience it alike.

Matrix-associated ion suppression or enhancement

A matrix effect is a change in ionization efficiency caused by co-eluting substances; it is invisible in the chromatogram but changes accuracy and sensitivity.⁴ When the SIL-IS co-elutes with the analyte it sits in the same local matrix environment, so suppression or enhancement moves both signals together and the ratio stays far more stable than either area.^1,2

This is compensation, not removal. The suppression is still there: it still lowers sensitivity, still widens imprecision near the lower limit of quantification (LLOQ) and can still differ between matrix lots.

Extraction and sample-preparation loss

A SIL-IS added before extraction follows the analyte through protein precipitation, liquid–liquid extraction, solid-phase extraction (SPE), evaporation and reconstitution, so a loss in any of those steps cancels in the ratio. Wu and co-workers give a clinical example: lapatinib recovery varied 2.4-fold (29–70%) across six donor plasmas and 3.5-fold (16–56%) across six cancer patients. A structural-analog internal standard and the deuterated lapatinib both passed validation in pooled plasma, but only the deuterated standard corrected the patient-to-patient recovery differences.⁵

ICH M10 makes the same point from the other side: recovery need not be 100%, but analyte and IS recovery should be consistent.³ Whether they are can be measured with the pre- and post-extraction spikes of the three-set experiment described in the post-extraction spike guide.

Injection-volume and final-vial variability

Once analyte and SIL-IS are in the same vial, a change in injected volume, a small evaporation loss or a transfer error changes both delivered amounts by the same factor. Both areas move; the ratio does not.

Common-mode instrument drift

Jiang and co-workers ran analyte, SIL analog, structural analog and an unrelated compound for more than 12 h on several LC-MS/MS systems. Every compound drifted, generally by more than 25%, and the analyte and its SIL analog always drifted with the same pattern and direction. The same study found that drift was concentration dependent and that a SIL-IS at a single fixed concentration did not compensate for that part.⁶

What does a SIL-IS not correct automatically?

An isotope label makes matched behavior likely; it does not guarantee it. Each case below breaks the assumption that the ratio tracks concentration.

A different retention time

Matrix effects are local in chromatographic time. Deuterium labels can shift retention: in a comparison of ¹³C- and ²H-labeled standards for amphetamine and methamphetamine by ultra-high-pressure LC-MS/MS, the ¹³C standards co-eluted with the analytes under the different chromatographic conditions tested while the ²H standards separated slightly, and the ¹³C standards compensated better for ion suppression.² ICH M10 likewise notes that isotope standards may differ from the analyte in retention time and MS sensitivity.^{3 13}C, ¹⁵N or ¹⁸O labels are therefore generally closer to the analyte, but co-elution has to be shown for the actual method, not inferred from the isotope.

A loss that happens before the IS is added

An internal standard cannot correct an event it did not experience. A SIL-IS added to the final extract still tracks injection and ionization but cannot see analyte lost during extraction.

Cross-signal contribution between the channels

Signal can leak in both directions. From analyte to IS: natural isotopes of the analyte – especially for compounds containing sulfur, chlorine or bromine – can fall in the SIL-IS channel, so the apparent IS response rises with analyte concentration and the calibration curves. For flucloxacillin, Radovanovic and co-workers measured biases of up to 36.9% with the SIL-IS at 0.7 mg/L; raising the SIL-IS to 14 mg/L cut the bias to 5.8%, and monitoring a less abundant SIL-IS isotope cut it to 13.9% at 0.7 mg/L.⁷ From IS to analyte: unlabeled analyte in the labeled material adds signal to the analyte channel, which matters most at the LLOQ; ICH M10 asks for it to be checked, and the M10 questions and answers accept the zero sample (blank matrix with IS) as the test.^3,8

Interference in the IS channel only

A co-eluting component can add to or suppress the IS transition without touching the analyte. Verhaeghe describes a validated assay in which a co-eluting peak boosted the SIL-IS response in samples from hepatically impaired subjects, so study samples behaved differently from calibration standards and quality control samples (QCs); the fix was a chromatographic change and revalidation.⁹ An unusual IS response is evidence to investigate, not noise to normalize away.

Detector saturation and concentration-dependent response

Saturation does not always break the ratio. Nilsson and Skansen compared three LC-MS/MS systems over a 128,000-fold concentration range with a fixed SIL-IS: where ionization limited the response, the analyte/IS ratio per unit concentration stayed constant; where ion detection limited it, the ratio fell as concentration rose.¹⁰ Liu and co-workers showed that in a system whose response is nonlinear, adding the SIL-IS itself moves the analyte along the curve – the more IS, the larger the change.¹¹

An unsuitable IS concentration

The concentration cuts both ways. Too little IS lets analyte-to-IS cross-contribution dominate the IS channel at high analyte concentrations, as the flucloxacillin biases show; too much can shift the analyte response in a nonlinear system.^7,11 As a working rule, choose the IS concentration experimentally across the calibration range rather than for a convenient peak height.

Why does co-elution decide whether matrix effects are corrected?

Suppression often comes from a narrow region of the chromatogram, so a retention difference of a few seconds can put analyte and SIL-IS in different matrix environments. The question to ask is not whether the internal standard is isotope labeled but whether it elutes close enough to the analyte to see the same matrix under the final column, gradient and sample conditions.

Overlaying the analyte and SIL-IS retention windows on a post-column infusion trace shows directly whether both sit in the same part of the suppression profile; the post-extraction spike then measures how large the effect is at that retention time.

When should the SIL-IS be added to the sample?

Add the internal standard before the source of variability it is meant to correct. Table 1 sets out what each addition point can and cannot track.

Which point is right depends on the analyte, the preparation and what the method must control. ICH M10 expects a suitable IS in all calibration standards, QCs and study samples during processing.³

How do you test whether a SIL-IS corrects the matrix effect?

Do not judge the internal standard from the final ratio alone. During development, look at four views across independent matrix lots:

1. Analyte absolute response in each lot.
2. SIL-IS absolute response in the same lots.
3. The analyte/IS ratio in the same lots.
4. Retention time and peak shape of analyte and SIL-IS.

If both absolute responses move together and the ratio stays stable, the evidence supports common-mode compensation. If the ratio moves with matrix lot, retention region, analyte concentration or IS response, the IS is not tracking.

The same check can be put in numbers. With matrix factors (MF) measured for analyte and IS separately, the IS-normalized matrix factor is their quotient:

MF_{IS-normalized} = MF_analyte / MF_IS

In the differential example above, MF_analyte = 0.60 and MF_IS = 0.80, so MF_{IS-normalized} = 0.60 / 0.80 = 0.75: the ratio still carries a 25% matrix effect. A value near 1.00 shows that the IS cancels the effect, even when each absolute matrix factor is far from 1.00. In regulated validation, ICH M10 judges the end result rather than the factors: low and high QCs in at least six matrix sources or lots must each meet ±15% accuracy and a coefficient of variation (CV) of no more than 15%.³

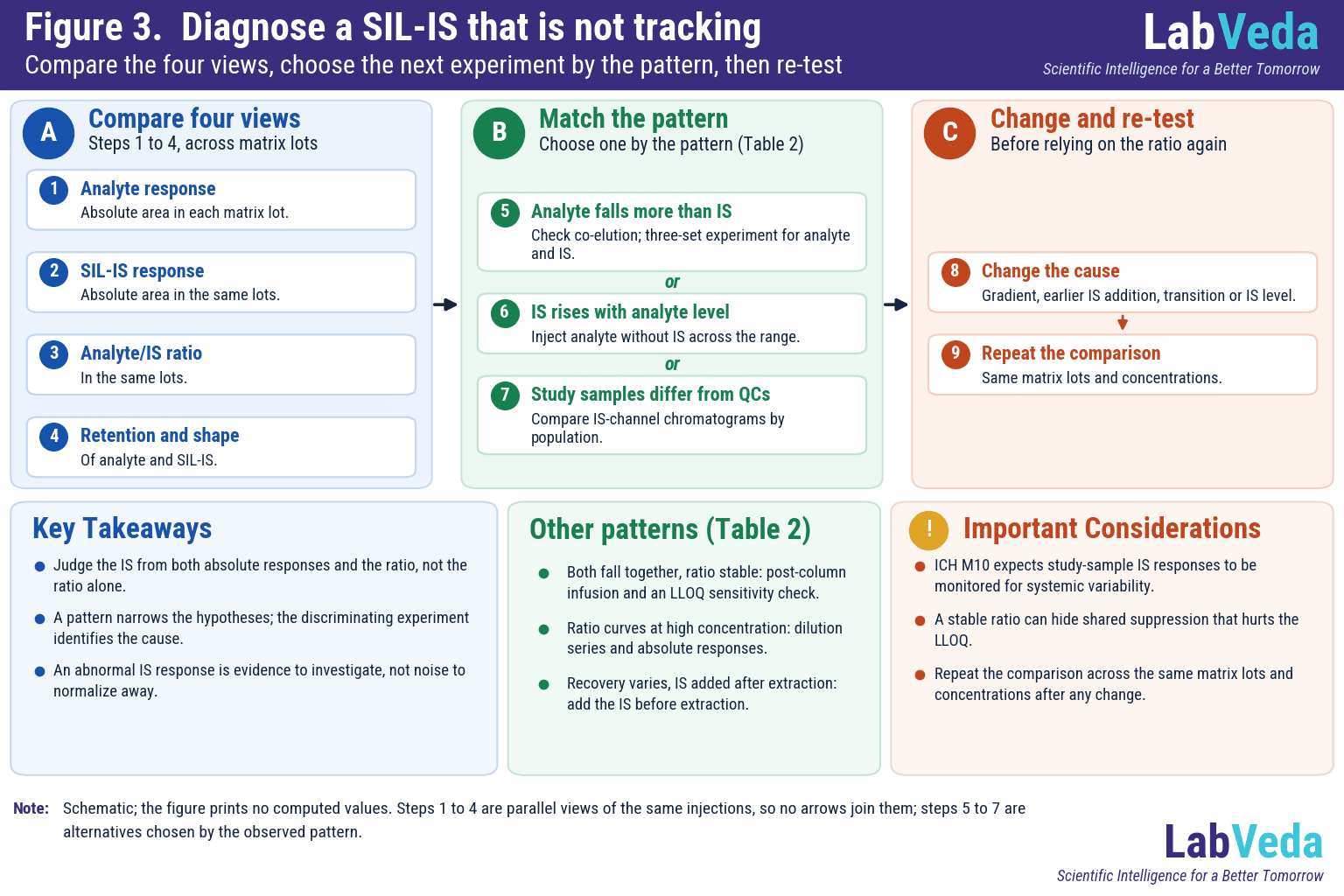

How do you diagnose an abnormal SIL-IS response?

An abnormal internal-standard trace is diagnostic information. ICH M10 expects study-sample IS responses to be monitored for systemic variability and lists an IS response significantly different from the calibrators and QCs, as defined in a standard operating procedure (SOP), as a reason to reanalyze.³ Table 2 maps common patterns to the next experiment, and Figure 3 turns it into a path.

After any change – a new gradient, an earlier IS addition, a different transition or IS level – repeat the comparison across the same matrix lots and concentrations before relying on the ratio again. Persistent study-sample IS trends deserve the same treatment as rising peak areas through a batch, covered in the LC-MS increasing peak areas workflow.

Can a stable analyte/IS ratio hide a weak LC-MS/MS method?

Yes. If analyte and SIL-IS are suppressed by the same large amount, the ratio holds while absolute sensitivity collapses, and LLOQ precision, integration and robustness can all suffer. A ratio can also look acceptable at mid-range while cross-signal contribution or IS-channel interference biases one end of the curve. Fu and co-workers note that pre-spiked QCs can pass while lot-dependent IS variation appears later in incurred samples.¹²

Monitor both absolute responses and the ratio. The ratio says whether normalization is working; the individual signals say why. If sensitivity or LLOQ precision suffers, the fix is to reduce the suppression itself through sample cleanup or chromatographic separation, not to rely on the ratio. The same reasoning applies when a dilution gives nonlinear results: a stable ratio alone does not prove the result is right.

Should you choose a SIL-IS or a structural-analog internal standard?

For quantitative LC-MS/MS a suitable SIL-IS is generally preferred because it has the best chance of matching the analyte through extraction, chromatography and ionization; the lapatinib study is a case where only the labeled standard corrected recovery between patients.^2,5 A structural analog remains an option when no labeled standard is available, stable or affordable, but its different structure can mean different retention, recovery and ionization, and Verhaeghe’s second case shows blank plasma suppressing an analog IS response.⁹ Either way, the choice is demonstrated experimentally, not assumed from the label.

What checks qualify a SIL-IS during method development?

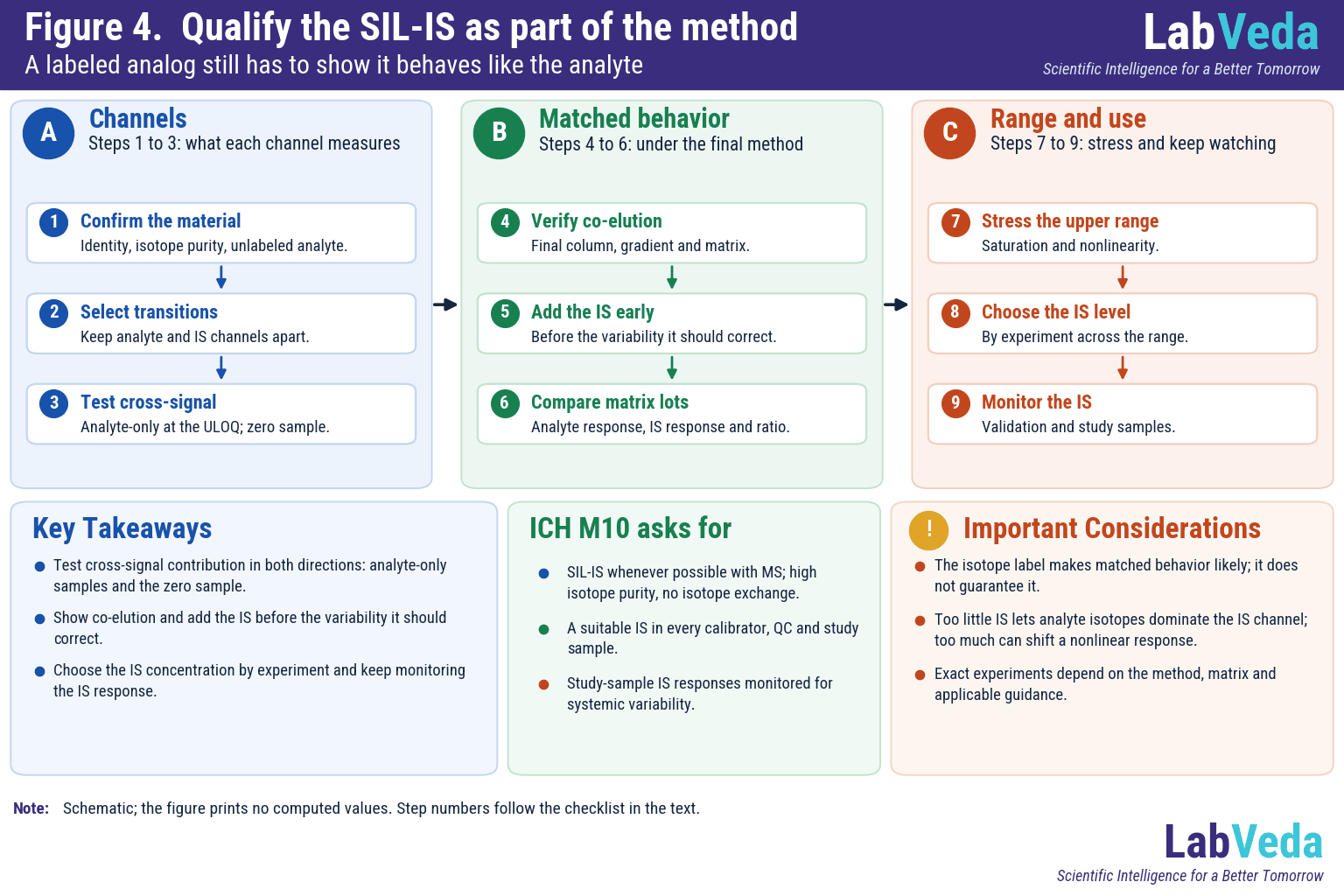

A labeled internal standard is part of the method and is qualified with it. Figure 4 groups the checks into three phases.

1. Confirm the labeled material’s identity, isotope purity and any unlabeled analyte content.³
2. Select precursor and product ions that keep the analyte and IS channels apart.
3. Run analyte-only samples at the upper limit of quantification (ULOQ) and a zero sample to measure cross-signal contribution in both directions.^7,8
4. Verify co-elution under the final column, gradient and matrix.
5. Add the SIL-IS before the variability it is meant to correct.
6. Compare analyte response, IS response and ratio across independent matrix lots.
7. Stress the upper range for saturation and nonlinearity.
8. Choose the IS concentration experimentally across the calibration range.
9. Monitor IS response through validation and study-sample analysis for systematic change.³

Frequently asked questions

Should the SIL-IS peak area stay constant across a run?

Not necessarily. The absolute IS response can move with matrix effects, source contamination, injection differences and drift, and a SIL-IS that moves in step with the analyte is doing its job. What matters is whether the movement is shared with the analyte, explainable and within the limits the laboratory has defined. ICH M10 expects IS responses in study samples to be monitored for systemic variability and treats an IS response that differs significantly from calibrators and QCs, as defined in an SOP, as a reason for reanalysis.³

Is a deuterated internal standard acceptable?

Often, but not automatically. Deuterium substitution can shift retention enough to separate the IS from the analyte, and where suppression changes steeply with time the two then see different matrix. ¹³C-labeled standards co-eluted and compensated better in a direct comparison.² Check co-elution under the final method, watch for isotope exchange, which ICH M10 says must not occur, and compare analyte and IS responses across matrix lots before relying on a deuterated standard.³

Can I add the SIL-IS after extraction?

Yes, if the goal is to normalize what happens after extraction: final-vial handling, injection volume and shared ionization changes. It cannot correct analyte lost before it was added, so variable extraction recovery will pass straight through to the result. If recovery varies between samples or matrix lots, as it did between patients in the lapatinib study, move the addition point ahead of the extraction step that loses analyte.⁵

How much SIL-IS should I add?

Enough to integrate reliably at every level, chosen by experiment rather than by peak height. Too little lets the analyte’s natural isotopes dominate the IS channel at high concentrations; in the flucloxacillin study, raising the IS from 0.7 to 14 mg/L cut the bias from 36.9% to 5.8%.⁷ Too much can shift the analyte response in a nonlinear system and raises the contribution of any unlabeled analyte in the IS material to the LLOQ.^3,11 Test the chosen level across the full calibration range.

Why does my SIL-IS response increase at high analyte concentrations?

The most likely cause is analyte-to-IS cross-signal contribution: the analyte’s natural isotope pattern, especially with sulfur, chlorine or bromine, reaches the m/z monitored for the IS.⁷ Inject analyte-only samples across the calibration range without IS and see whether the IS channel responds. If it does, monitor a less abundant IS isotope or a transition without overlap or raise the IS concentration, then retest.

The takeaway

A stable isotope labeled internal standard turns many sources of LC-MS/MS variability into common-mode changes that cancel in the analyte/IS ratio, but only under conditions the method has to demonstrate: the IS is added before the losses it should correct, co-elutes closely enough to share the analyte’s matrix environment, stays analytically separate from the analyte in both directions and operates where analyte and IS respond in proportion. Treat the SIL-IS as a tested component of the quantitative method: monitor both absolute responses and the ratio, and investigate an abnormal IS response rather than normalizing it away.

References

1. A. K. Hewavitharana, “Matrix matching in liquid chromatography–mass spectrometry with stable isotope labelled internal standards – is it necessary?,” J. Chromatogr. A 1218(2), 359–361 (2011).
2. P. Panuwet, R. E. Hunter Jr., P. E. D’Souza et al., “Biological matrix effects in quantitative tandem mass spectrometry-based analytical methods: advancing biomonitoring,” Crit. Rev. Anal. Chem. 46(2), 93–105 (2016).
3. International Council for Harmonisation, ICH M10: Bioanalytical Method Validation and Study Sample Analysis, Step 4 (24 May 2022), sections 3.1 Reference standards, 3.2.3 Matrix effect, 3.3 Study sample analysis, 7.1 and 7.3 Recovery.
4. P. J. Taylor, “Matrix effects: the Achilles heel of quantitative high-performance liquid chromatography–electrospray–tandem mass spectrometry,” Clin. Biochem. 38(4), 328–334 (2005).
5. J. Wu, R. Wiegand, P. LoRusso, J. Li, “A stable isotope-labeled internal standard is essential for correcting for the interindividual variability in the recovery of lapatinib from cancer patient plasma in quantitative LC-MS/MS analysis,” J. Chromatogr. B 941, 100–108 (2013).
6. F. Jiang, Q. Liu, Q. Li et al., “Signal drift in liquid chromatography tandem mass spectrometry and its internal standard calibration strategy for quantitative analysis,” Anal. Chem. 92(11), 7690–7698 (2020).
7. M. Radovanovic, G. Jones, R. O. Day, P. Galettis, R. L. Norris, “Mitigating analyte to stable isotope labelled internal standard cross-signal contribution in quantitative liquid chromatography-tandem mass spectrometry,” J. Mass Spectrom. Adv. Clin. Lab 24, 57–64 (2022).
8. International Council for Harmonisation, ICH M10 Bioanalytical Method Validation and Study Sample Analysis: Questions and Answers, Step 4 (16 November 2022), section 3, internal-standard interference shown from the zero sample.
9. T. Verhaeghe, “Systematic internal standard variability and issue resolution: two case studies,” Bioanalysis 11(18), 1685–1692 (2019).
10. L. B. Nilsson, P. Skansen, “Investigation of absolute and relative response for three different liquid chromatography/tandem mass spectrometry systems; the impact of ionization and detection saturation,” Rapid Commun. Mass Spectrom. 26(12), 1399–1406 (2012).
11. Q. Liu, F. Jiang, J. Zhu, G. Zhong, M. Huang, “Development, validation, and application of a new method to correct the nonlinearity problem in LC-MS/MS quantification using stable isotope-labeled internal standards,” Anal. Chem. 91(15), 9616–9622 (2019).
12. Y. Fu, W. Li, F. Picard, “Assessment of matrix effect in quantitative LC-MS bioanalysis,” Bioanalysis 16(12), 631–634 (2024).
